New Dispenser Assembly & Dust Bellows
Washer Combo Models: WM6998HVA /HBA / HWA

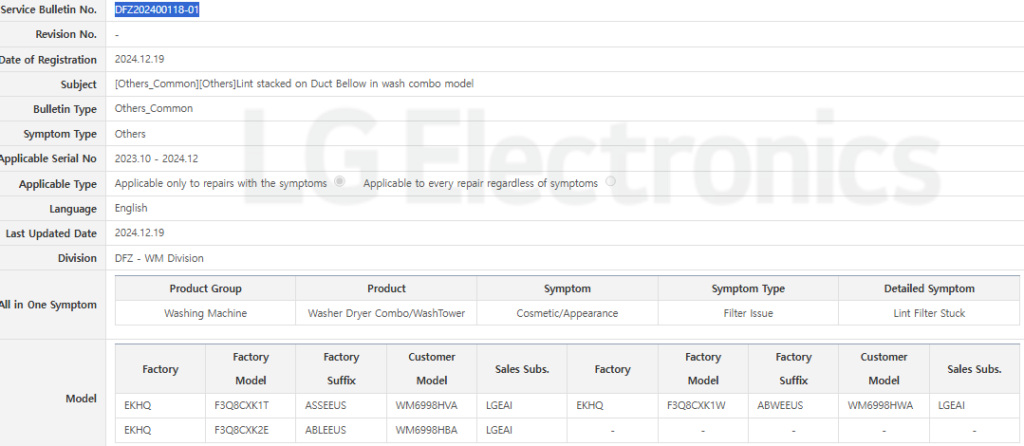

A new dispenser and duct bellows has been developed to reduce lint accumulation. This is detailed in Service Bulletin DFZ202400118-01.
Symptoms

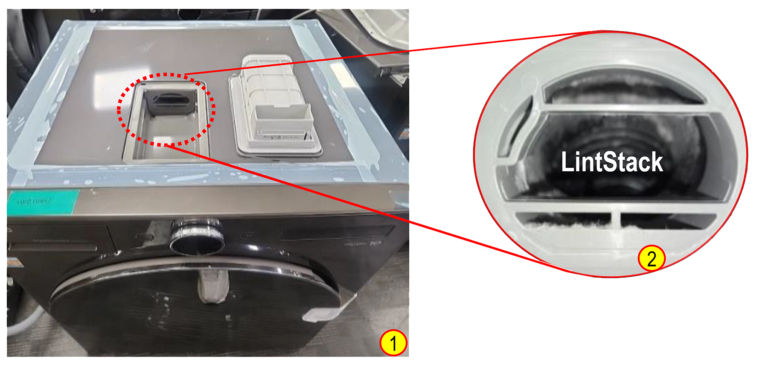

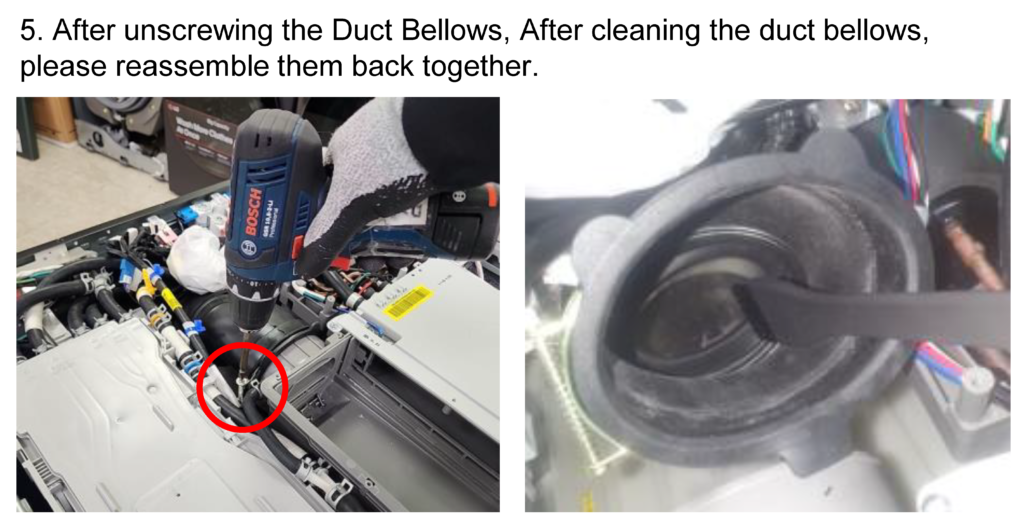

Lint has accumulated in the vent and duct bellows, which hinders the drying performance.
Improvements

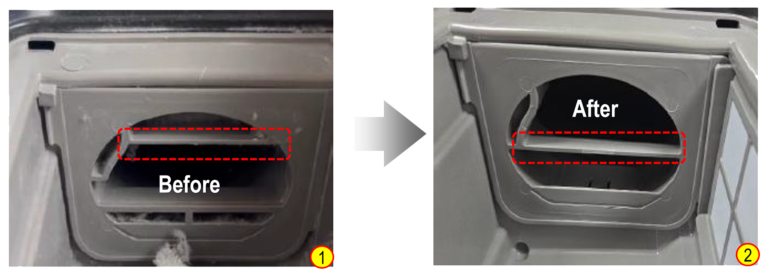

Vent: The Rib position of the vent has been change.
New P/No : MJZ63082801
SVC Loc No : A127

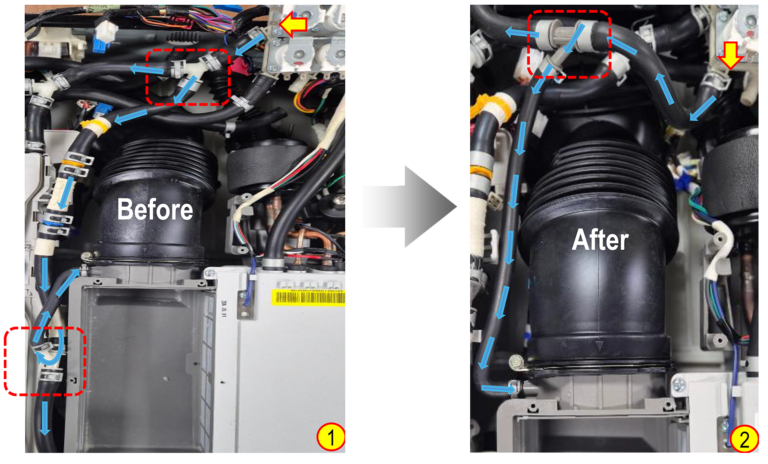

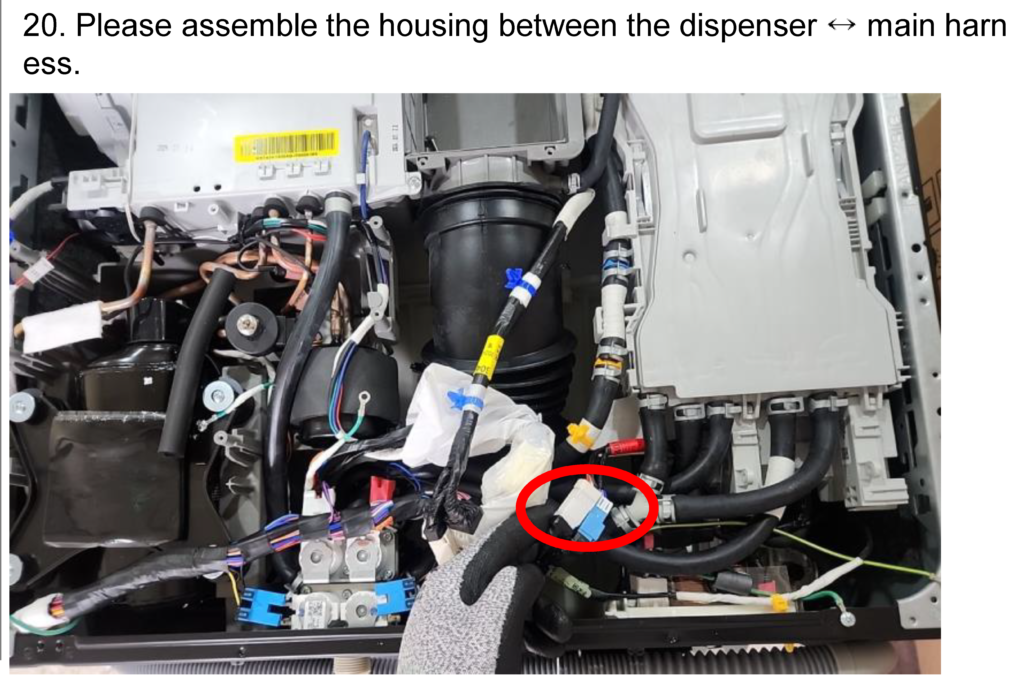

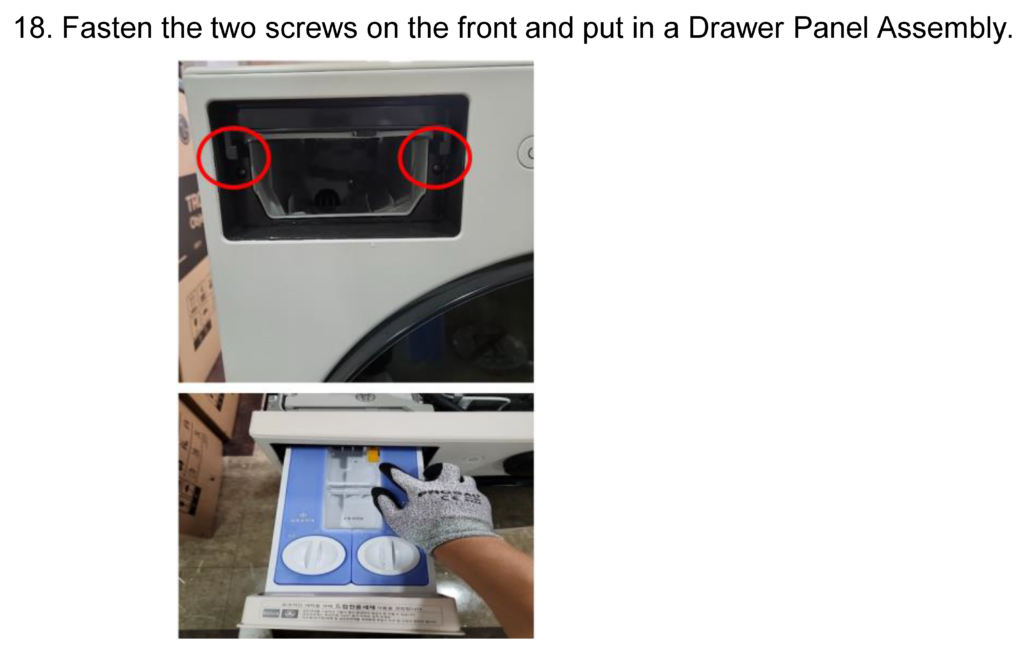

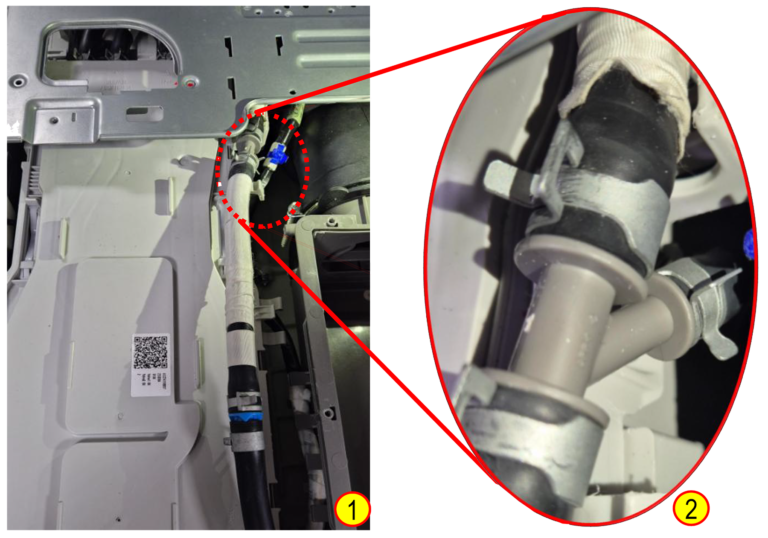

Dispenser: The dispenser has been changed.

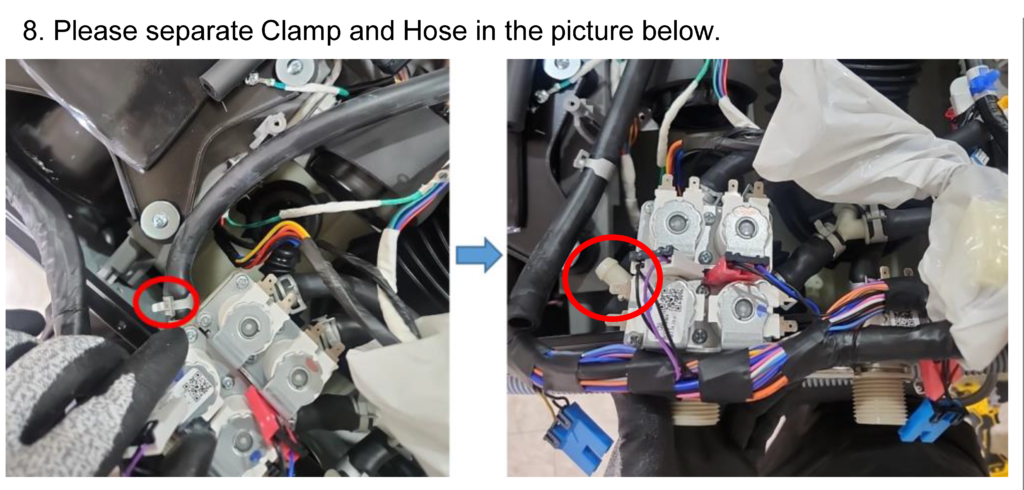

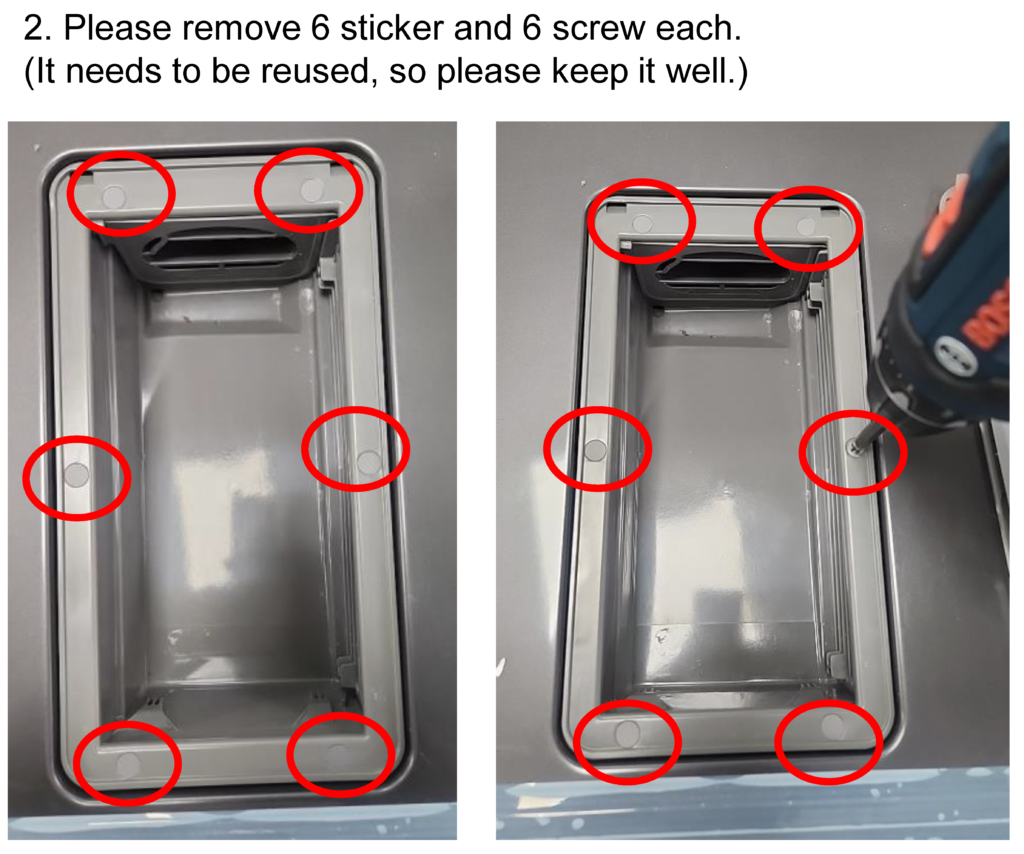

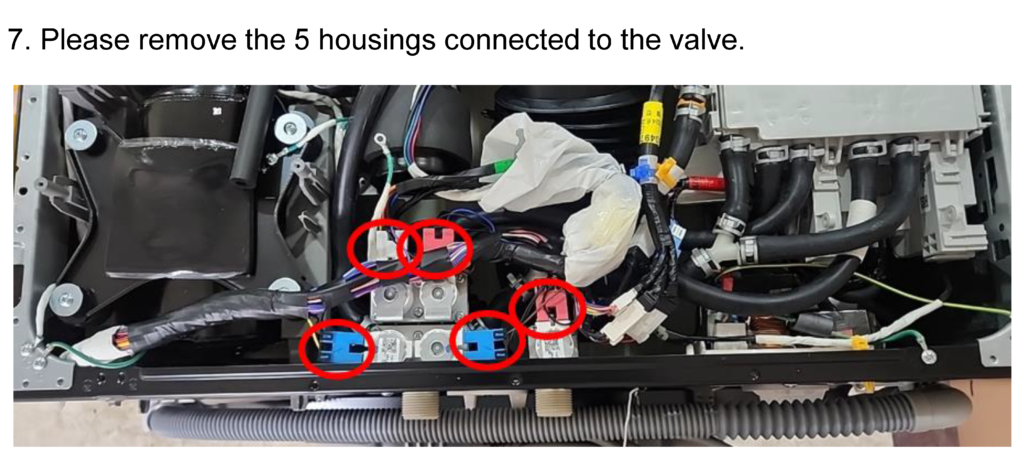

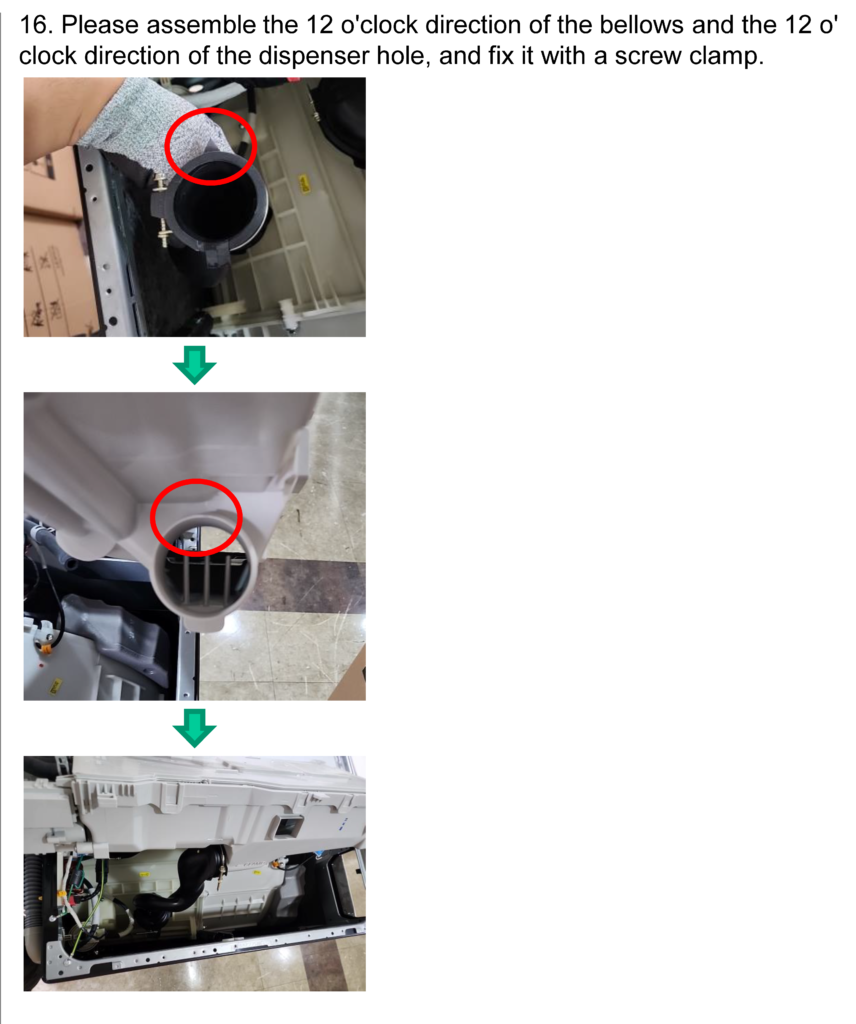

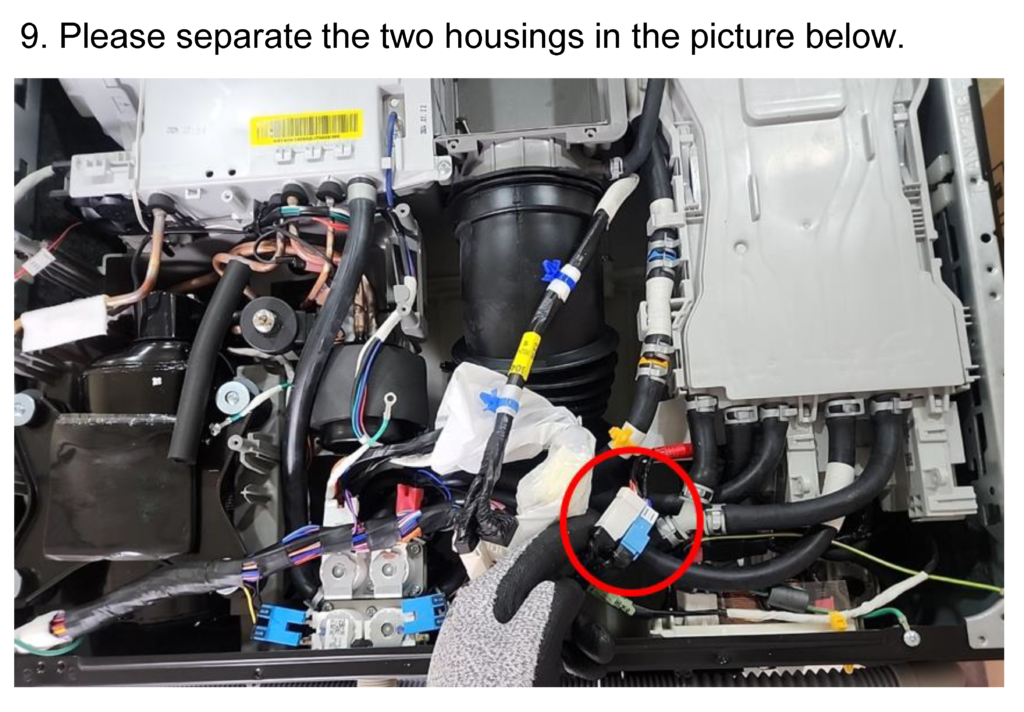

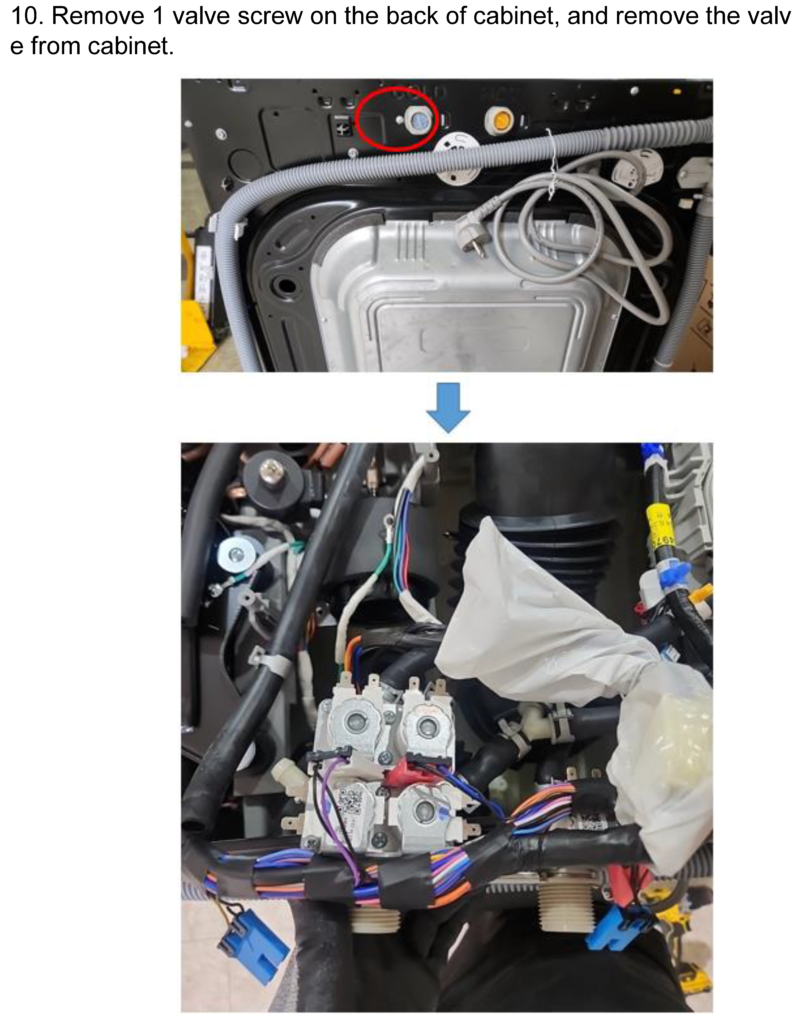

Repair Procedure

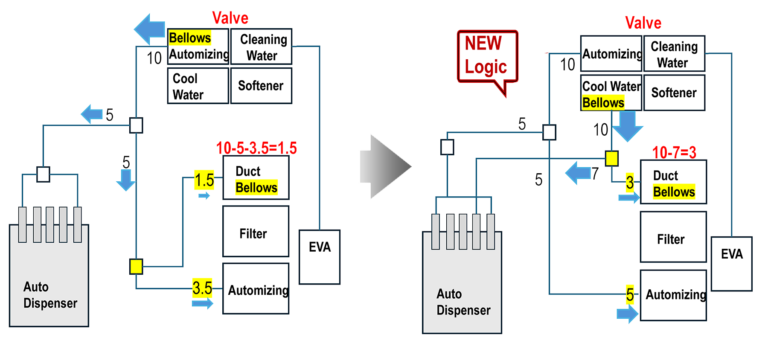

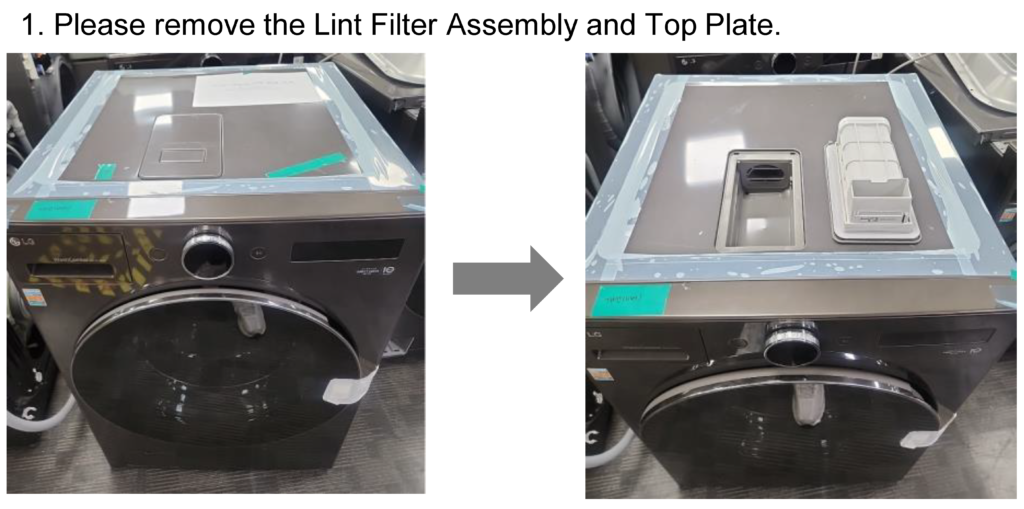

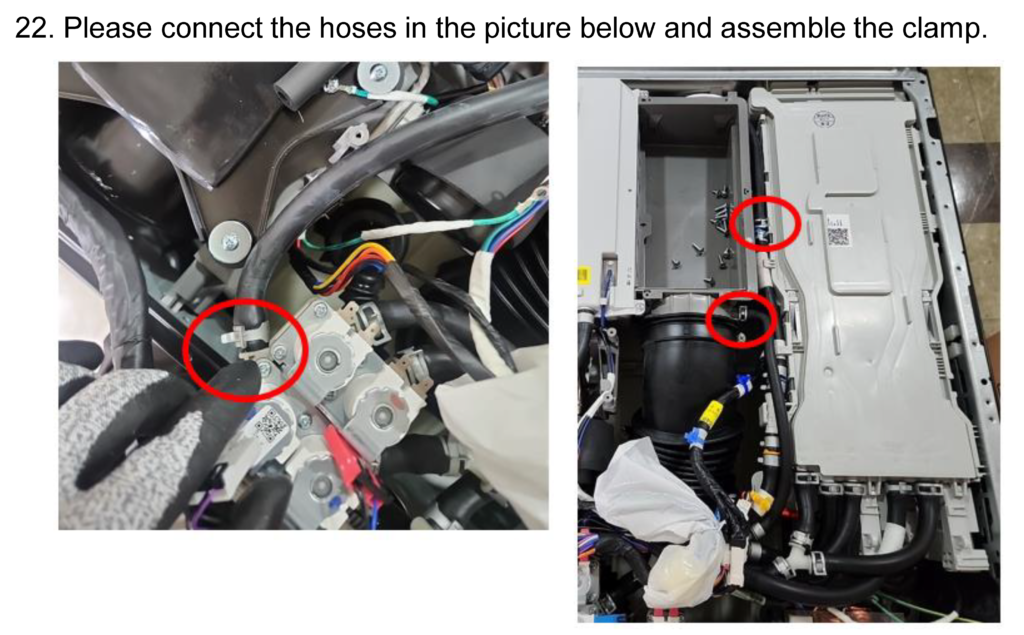

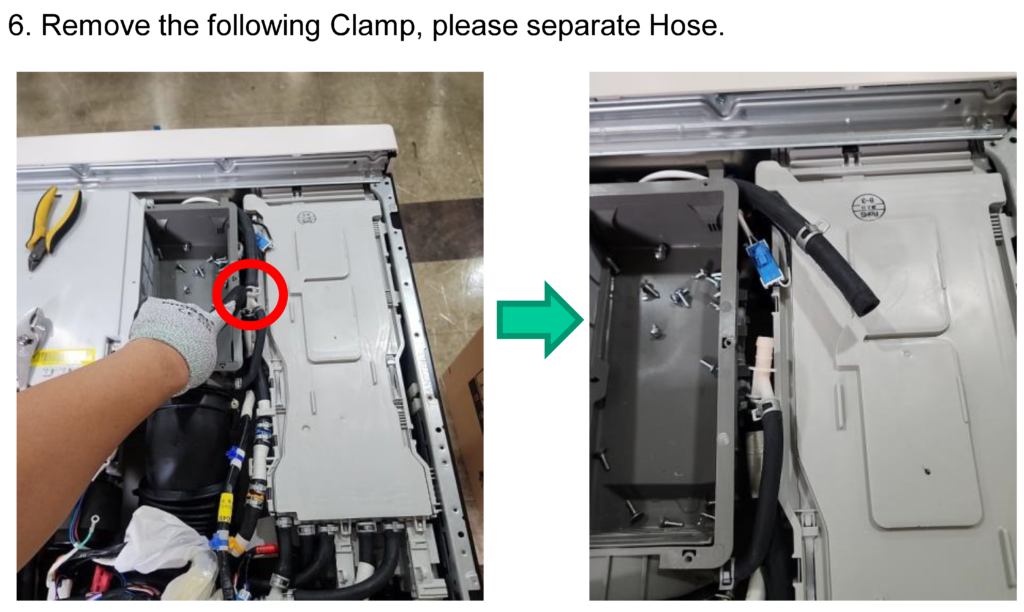

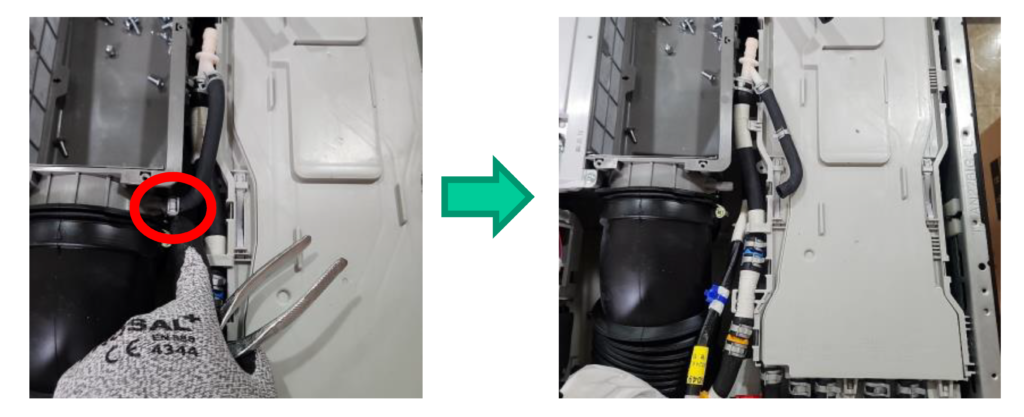

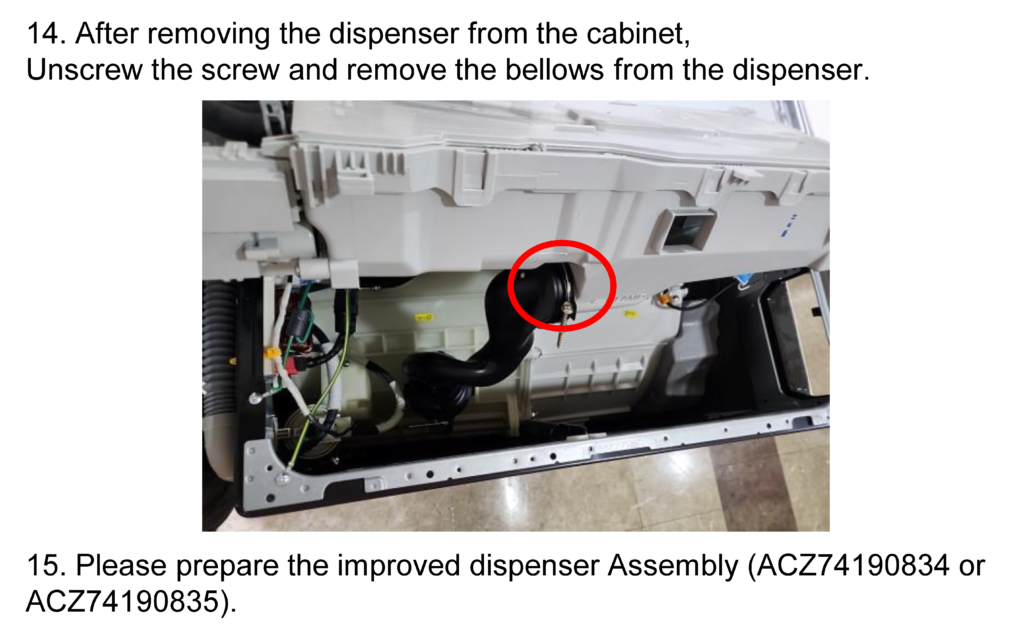

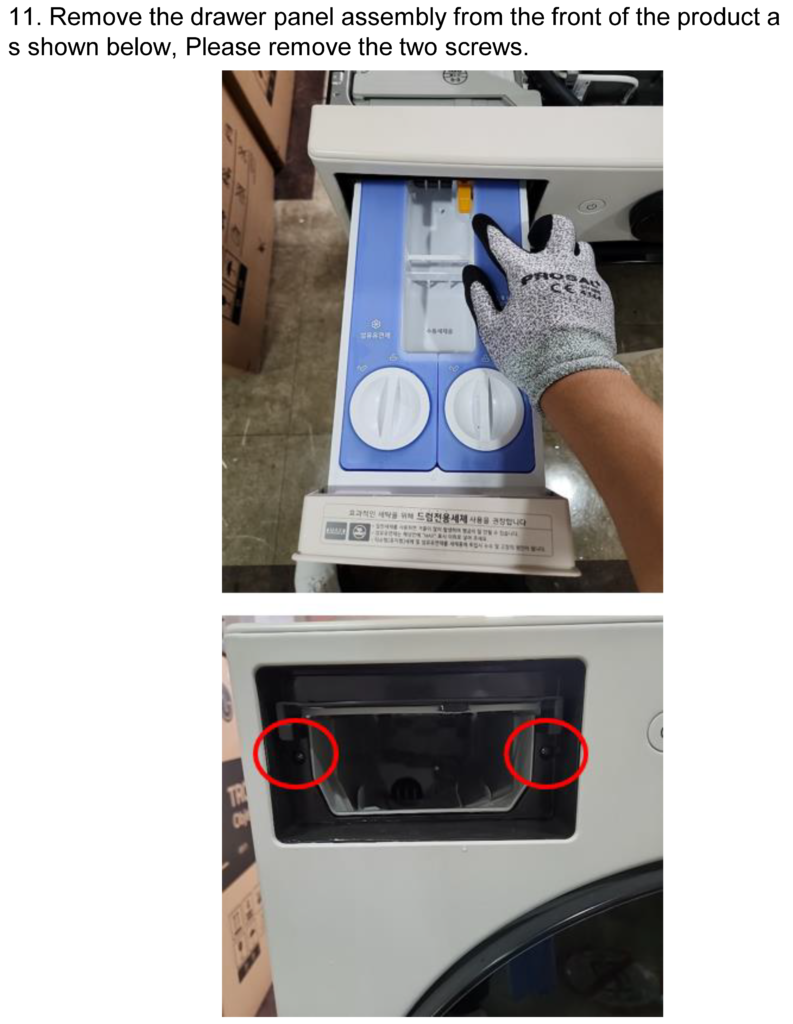

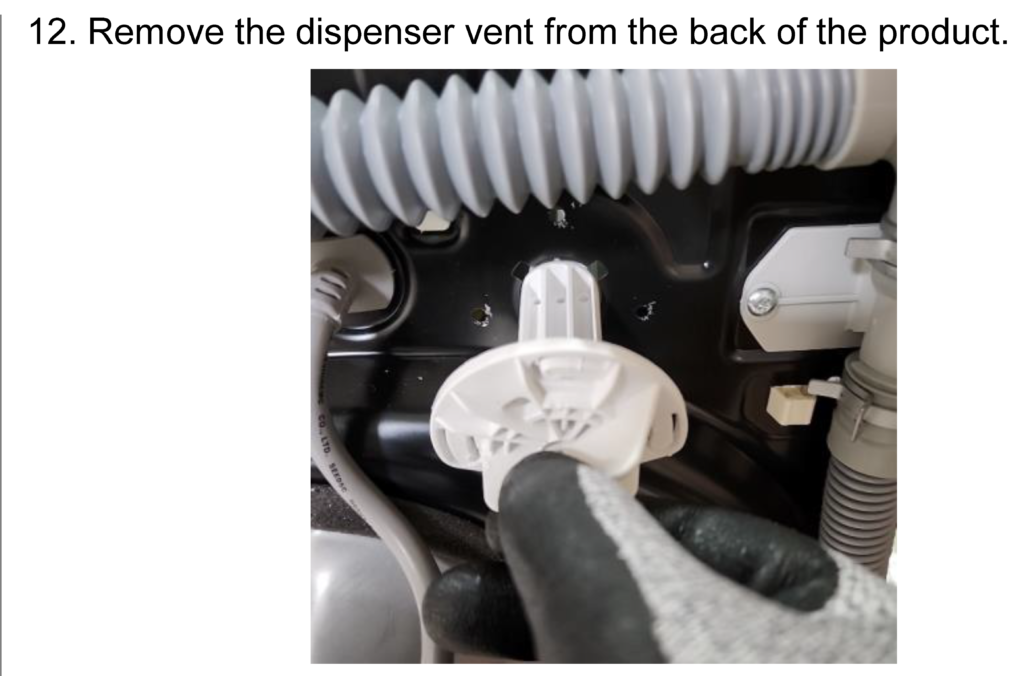

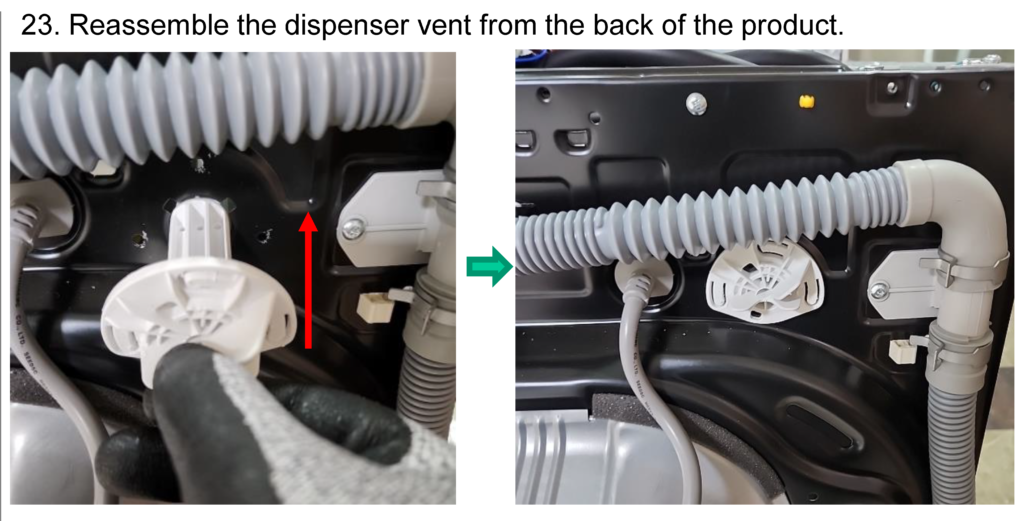

Replace the vent with the improved type that minimizes lint accumulation. The improved dispenser that increases water flow to the drying bellows must be replaced. Refer to Service Bulletin DFZ202400118-01.

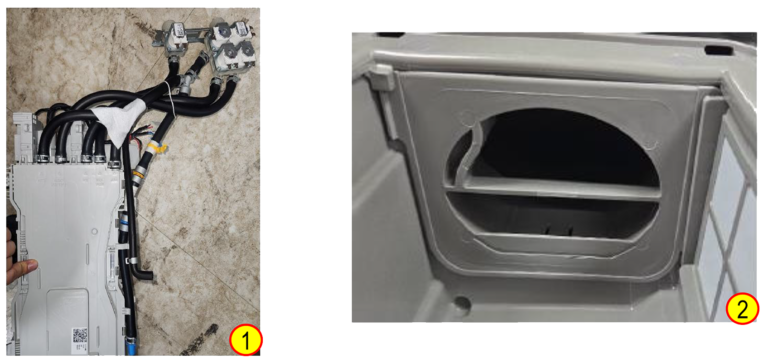

Part: ACZ74190834/35
SVC Loc: F500
Part: MJZ63082801
SVC Loc: A127
