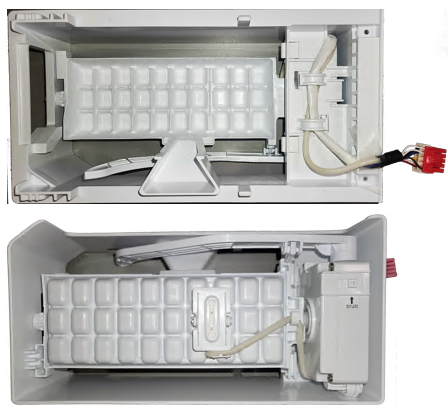

MINI-CUBED ICEMAKER OPERATON
The Mini Cubed Icemaker is an option in some models. The tray will make 30 cubes per cycle.
The approximate size of the cubes are: ½ inch wide by ¾ inch long and ¼ inch deep.

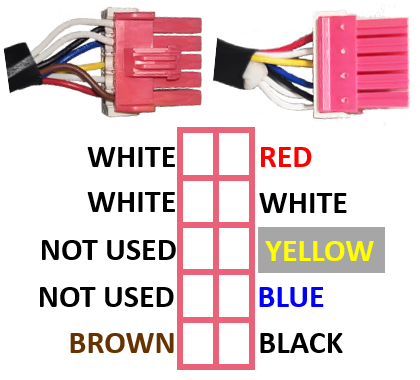

MINI CUBED ICEMAKER PINS
Red to White is Icemaker motor 17~20 ohms
Black to Brown is Test Switch
Black to Yellow is hall sensor 3.83 MΩ
Black to Blue is hall sensor 4.19 MΩ
White to White is icemaker thermistor use existing icemaker temperature chart:
TEMP ºF | ICE ROOM SENSOR Resistance kΩ | VOLTAGE DC |
-21 | 39.66 kΩ | 3.55V |
-14.8 | 31.37 kΩ | 3.30V |
-13.0 | 29.62 kΩ | 3.23V |
-11.2 | 27.97 kΩ | 3.17V |
-7.6 | 24.98 kΩ | 3.03V |
– 4.0 | 22.30 kΩ | 2.89V |
-0.4 | 20.00 kΩ | 2.76V |
3.2 | 17.94 kΩ | 2.63V |
5.0 | 16.90 kΩ | 2.56V |
6.8 | 16.11 kΩ | 2.49V |
10.4 | 14.49 kΩ | 2.36V |
14.0 | 13.00 kΩ | 2.23V |
17.6 | 11.76 kΩ | 2.10V |
21.2 | 10.62 kΩ | 1.98V |
23.0 | 10.10 kΩ | 1.92V |
24.8 | 9.60 kΩ | 1.86V |
28.4 | 8.69 kΩ | 1.75V |
32.0 | 7.80 kΩ | 1.63V |
In order to evenly distribute the water in each cell of the ice tray, the ice tray is tilted 10~20 degrees for about 10~30 seconds.
The Icemaker preforms this operation twice. At this time, the ice detection arm also moves.
What’s the fill time and can it be adjusted? I got 8 sec on craft and 3 sec on mini cubes fill time.
Hello,
The fill time varies by model, and some models have fill time adjustments that can be made from the control panel, while others have DIP switches on the main PCB, and then some models have no adjustments. If it can be adjusted the information will be in the service manual. If you need any other further assistance, reach out to the TCC Team.
