Dishwasher

Not Cleaning

Click on the Steps below to jump directly to that section:

Step 1
1
Check spray arms and filter for food debris.
Step 2
2
Excessive Food should be removed before loading.
Step 3
3
Educate customer on proper loading of dishes.
Step 4
Step
Check for proper water temperature.
Step 5
Step
Check for rinse aid being used.

**NOTICE**

Wiring Colors, Connectors, and Pins will vary by model/product code. Always be sure to download and use the service manual for your specific model.

For Test Mode procedures use this link and input your specific model: https://lgtestmodes.com/

Step 1

Check & clean food debris in the filters and spray arms. (Where applicable)

Step 2

Excessive Food should be removed before placing in the Dishwasher.

Step 3

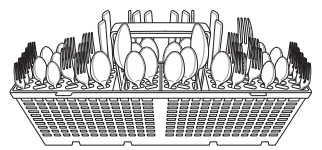

Make sure the Customer knows the proper way to load  the Dishwasher and avoiding the load in the racks from stopping the spray arms.

Step 4

Make sure the water coming into the Dishwasher is approximately 120 ° (not to exceed 140 °)

Place in test mode, and activate the fill step, let the unit fill till the water covers the bottom of the tub, and check the temperature of the water with a temp probe on your meter.

If the temperature is too cold or takes a very long time to increase, make sure the supply line to the Dishwasher is plumbed into the cold-water line or the hot-water line, which is what it should be.

If the Water heater is located a long-distance form the unit, the customer may have to run the water at the kitchen sink (closest to the Dishwasher), to get the hot water to start sooner.

Step 5

Advise the Customer of the importance of using rinse aid
