Gas Dryer
Rear Bulkhead Vent Discoloration
Click on the Steps below to jump directly to that section:
Customer Complaint;

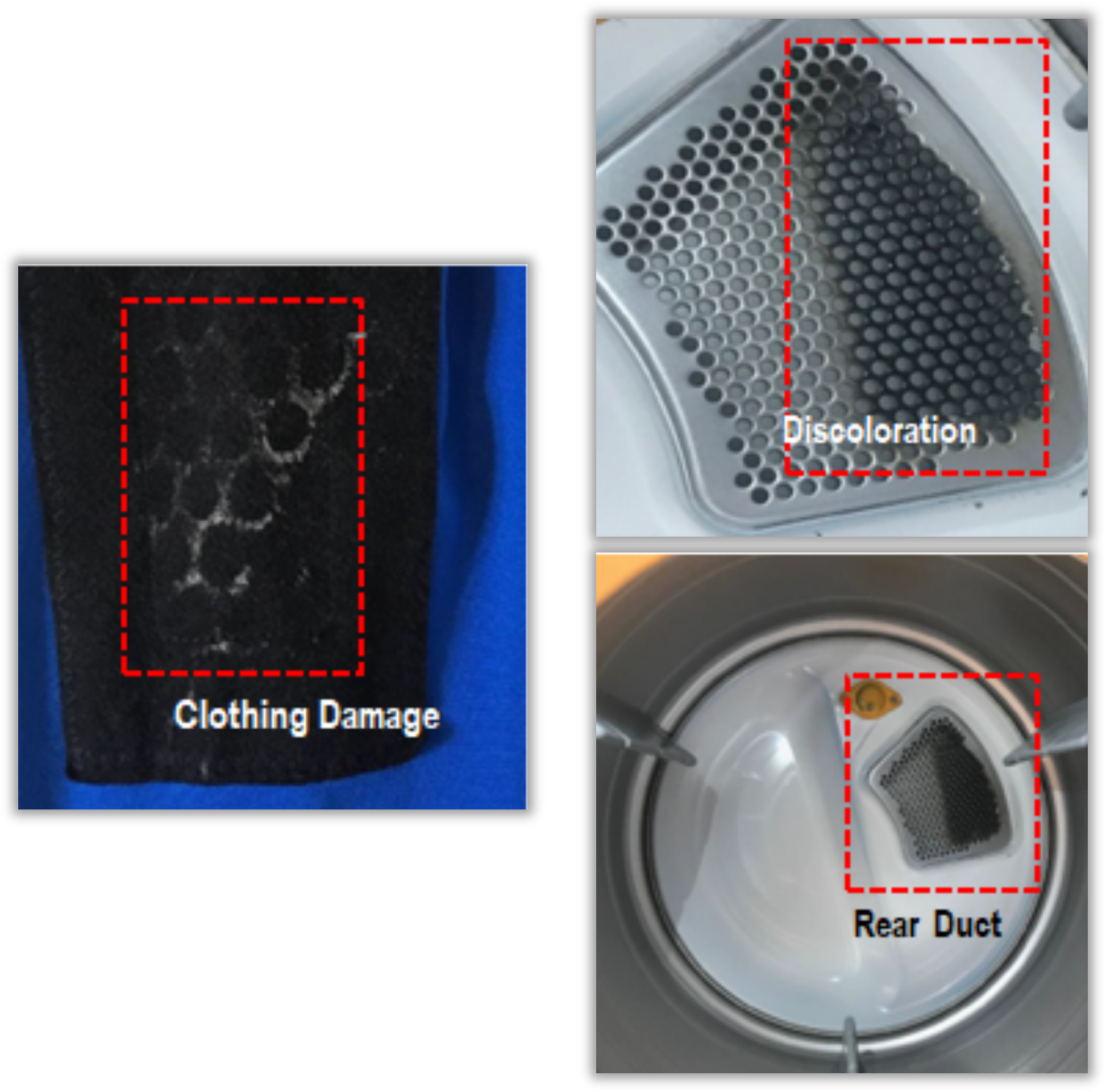

The Clothes are damaged, scorched, and the Rear Bulkhead
Vent Grill is discolored.
Cause;
1.Drying clothes for which the use of dryers is prohibited or drying at a higher temperature than the manufacture recommends. Note; Please inform the customer, to prevent a reclaim.
1.Filter or Home Vent Restricted.
2.Use of LP gas without replacing orifice.
**NOTICE**
Wiring Colors, Connectors, and Pins will vary by model/product code. Always be sure to download and use the service manual for your specific model.
For Test Mode procedures use this link and input your specific model: https://lgtestmodes.com/
Improper laundering of the garment.

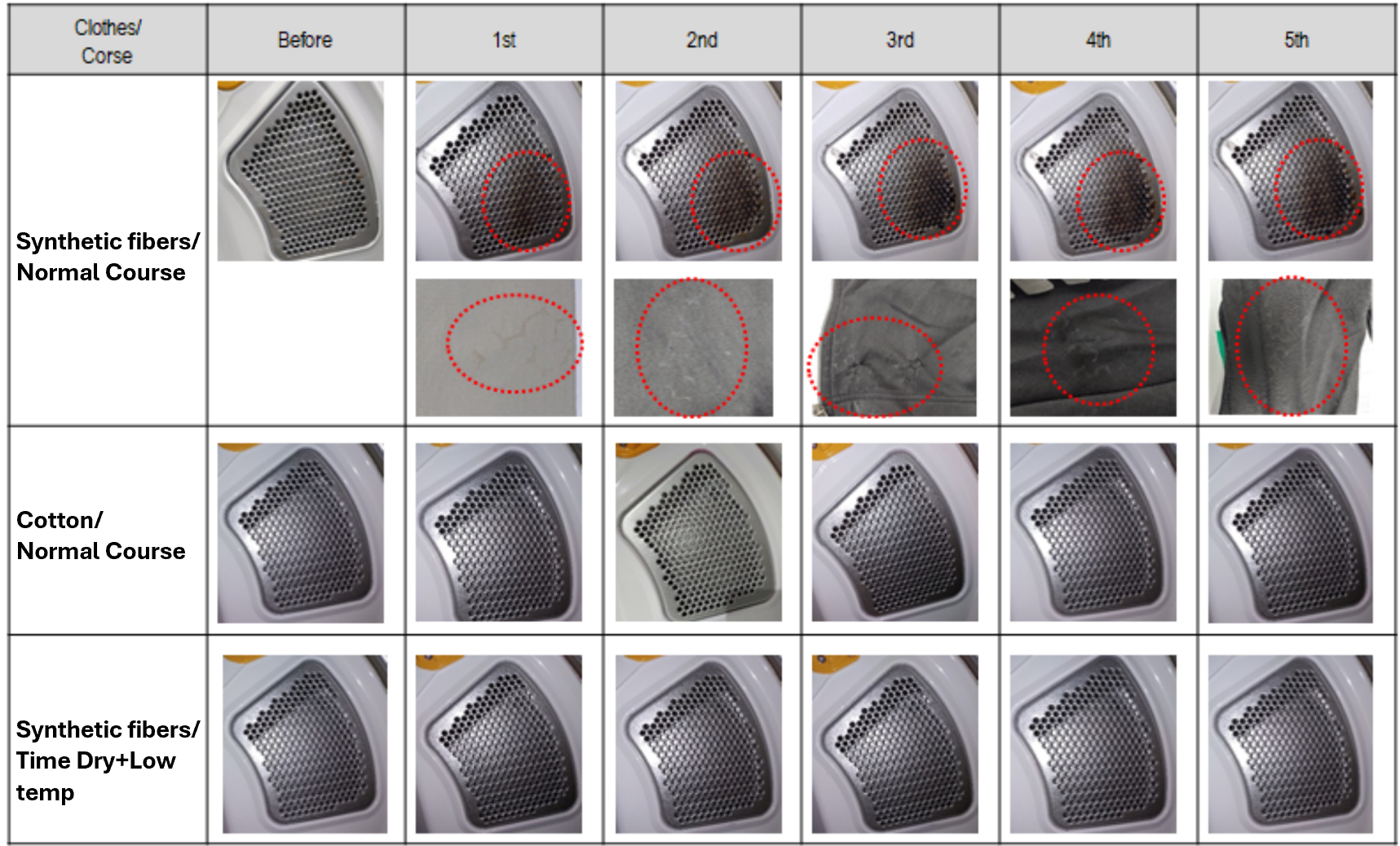

This is the most common cause of the damage to clothes and the grill.
Instruct the customer to give attention to proper care instructions from the manufacturer.
Improper laundering is the most common cause of garment damage. It can also lead to unintended scorching on the grill. Instruct the customer to carefully follow the manufacturer’s care instructions to ensure proper maintenance.

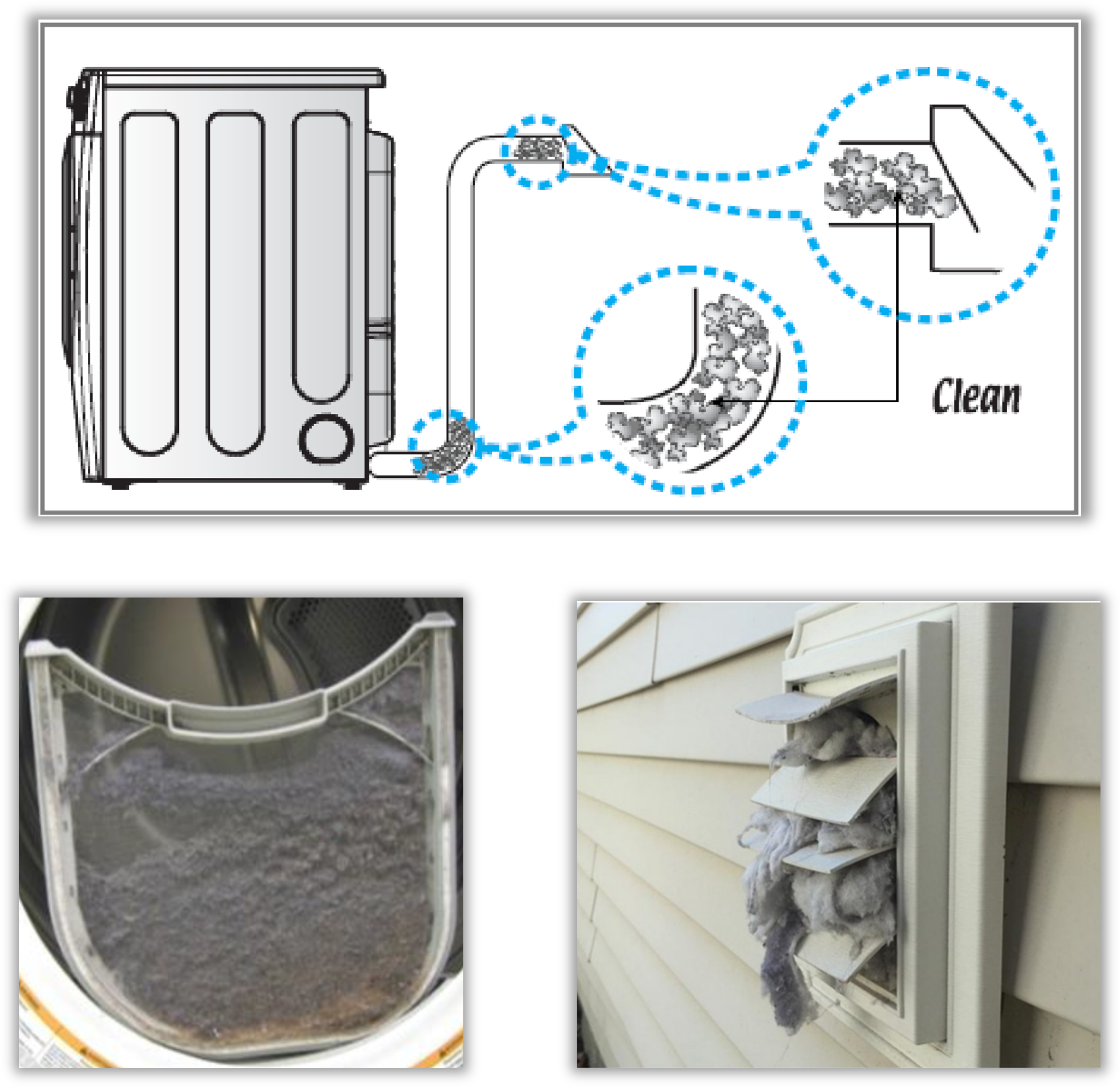

The lint filter or the home vent is restricted.
If the lint filter is restricted or has a bad installation, it can cause the scorching issue by causing the temperature at the rear duct grill to rise. Depending on the severity of the restriction the temperatures could rise approximately 20°~40° C (36°~72F°).

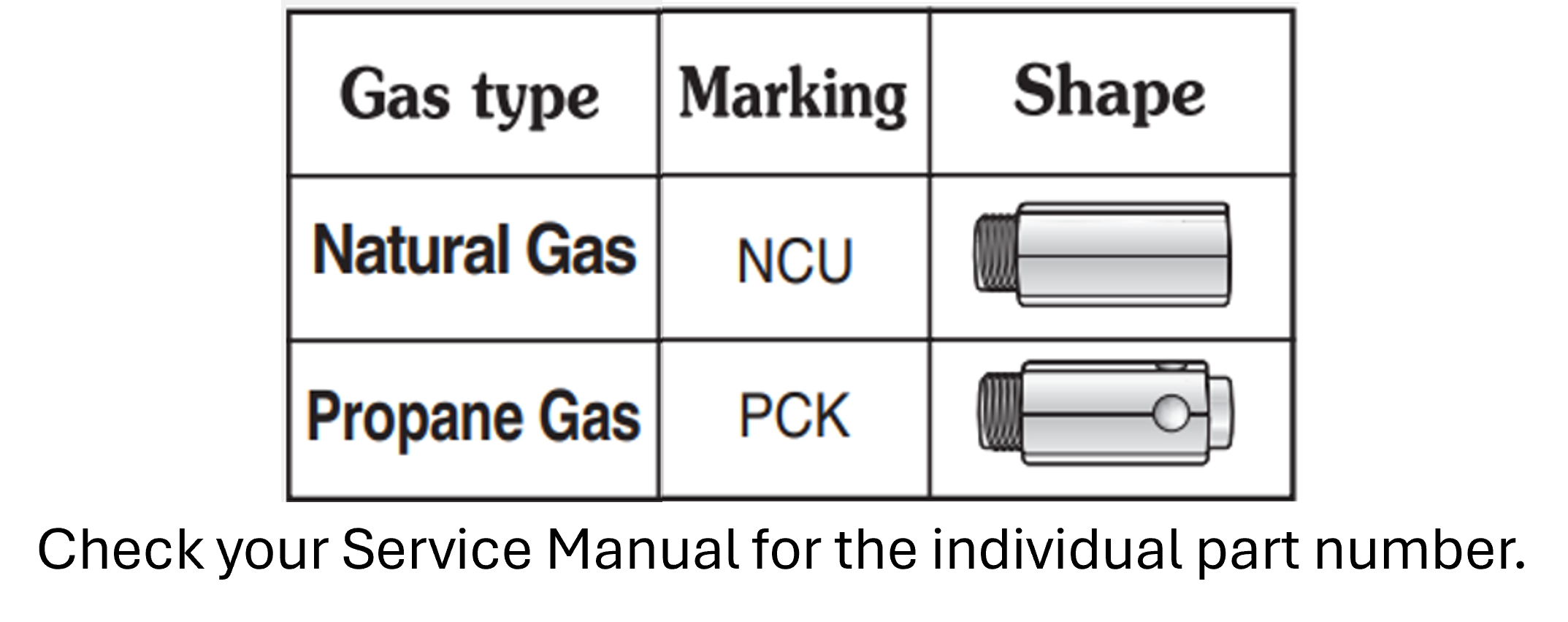

The Gas valve/orifice may not have been changed properly in a conversion to Propane.

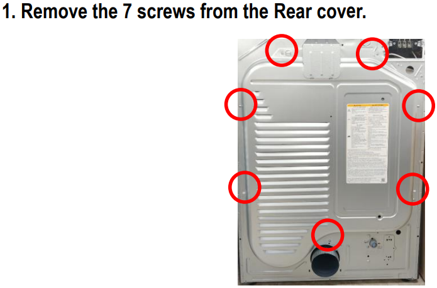

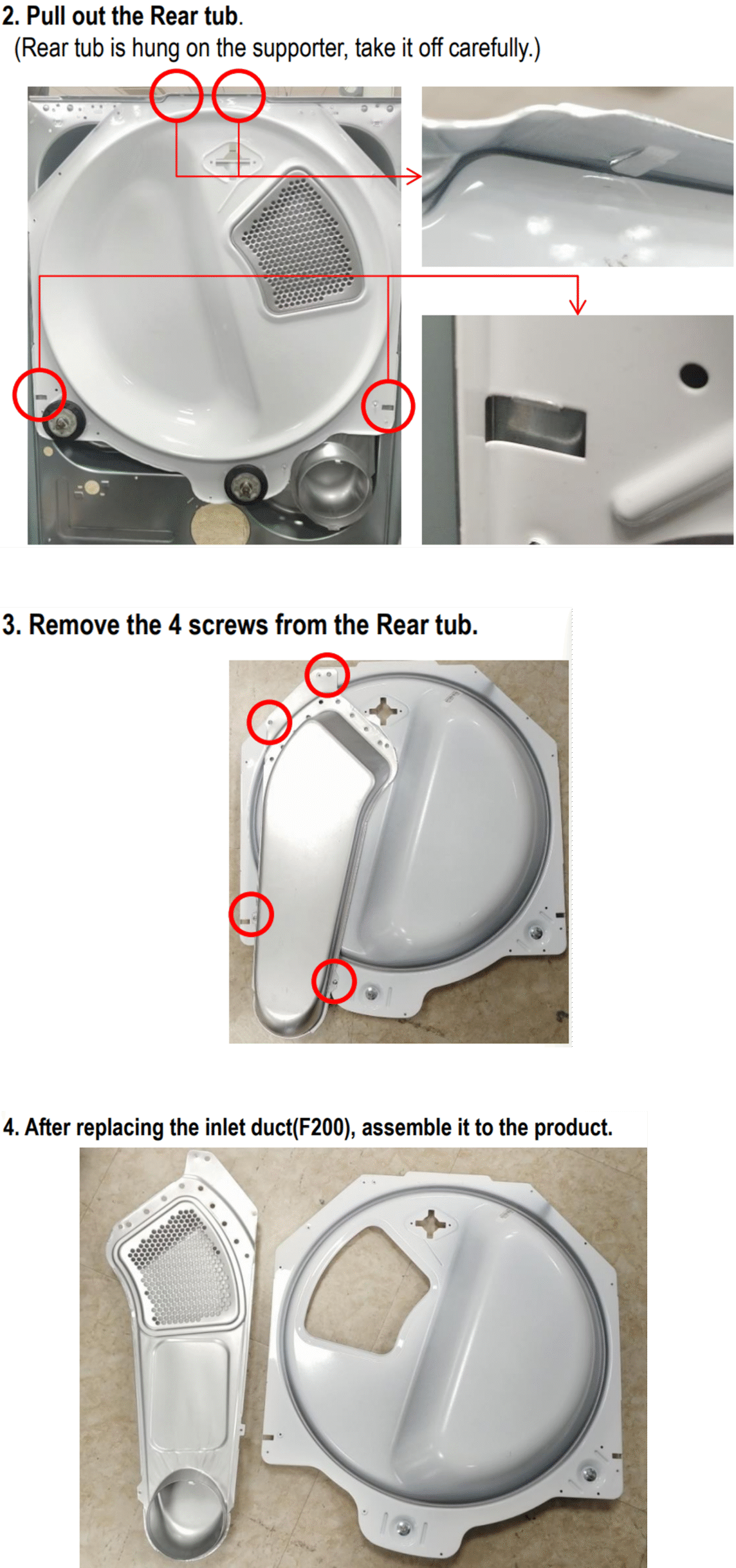

Repair Instructions
