BLDC Inverter Compressor
Now that you have accurately diagnosed the issue with the sealed system, click the below button for Sealed System Repair Contents:
3 PHASE ROTARY BLDC COMPRESSOR

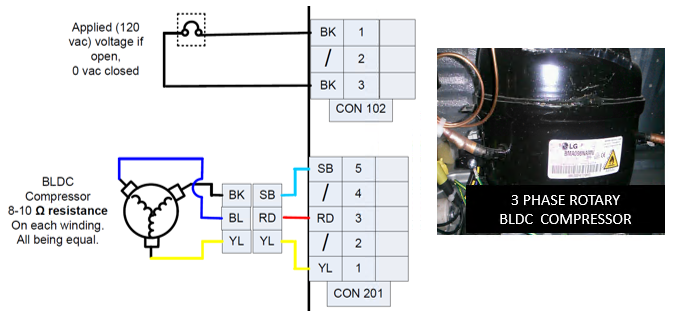

If the OLP opens it will kill power to everything. Before replacing the main board check voltage. If OLP is good you will read 0 vac across OLP. If OLP is bad you will read 120 volts across OLP.

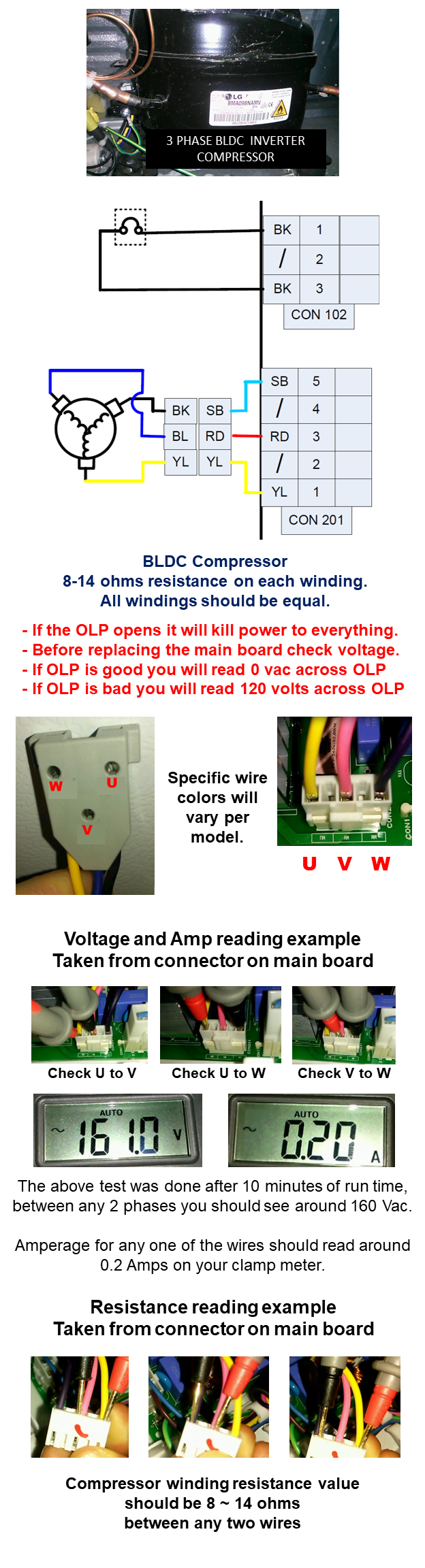

BLDC Compressor
8-14 ohms resistance on each winding.
All windings should be equal.

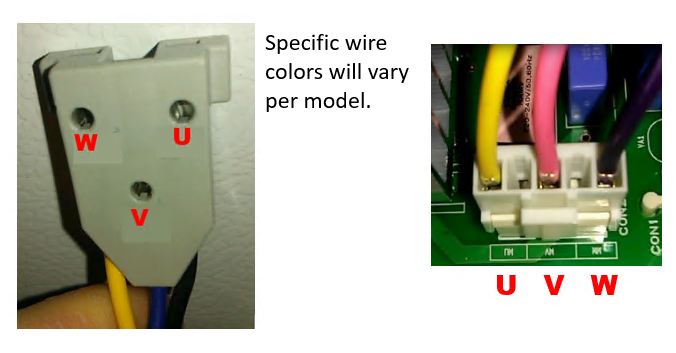

Voltage testing from main board
The above test was done after 10 minutes of run time,

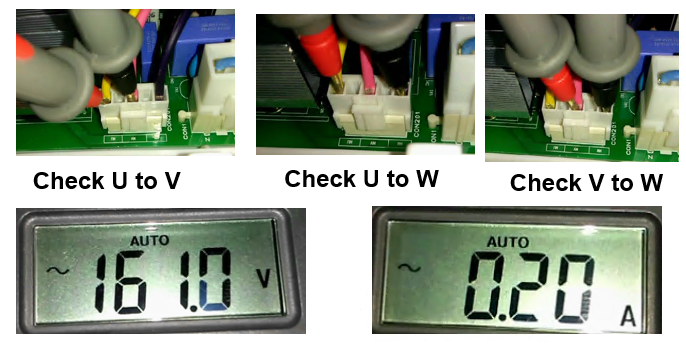

between any 2 phases you should see around 160 Vac.
Amperage for any one of the wires should read around 0.2 Amps on your clamp meter.
.

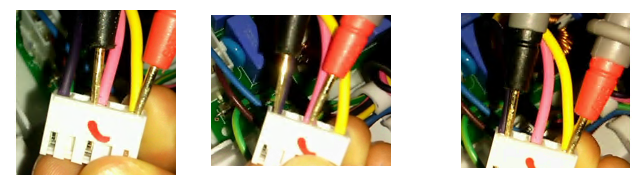

Resistance reading example taken from connector on main board.
Compressor winding resistance value should be 8 ~ 14 ohms between any two wires.
.
2 Responses
What is OLP? It is not explained on this page.
The OLP (Over Load Protection) functions as a safety device. In this application, it acts like a blown fuse—if it is open, the compressor will not start.
